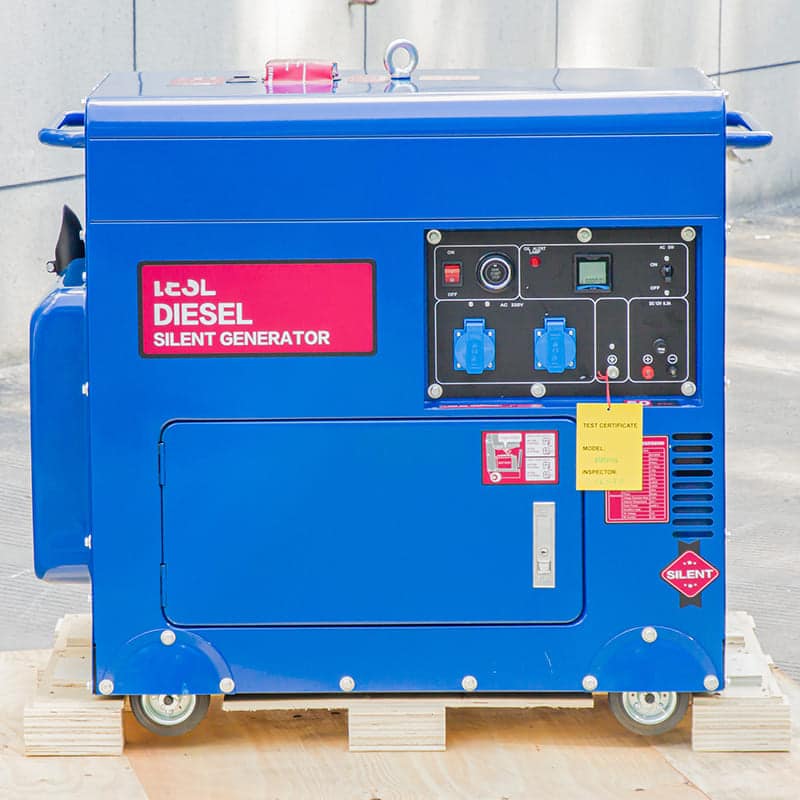

5KVA electric start silent diesel generator.The PSD6500E is one of the most popular 5KVA diesel generators available on the market. The small size, clean power output and low noise make it a reliable source of backup electrical power for your business or home and is portable enough for field work.
- Electric key start facility
- Soundproof canopy for reduced noise
- A new advanced electric fuel pump
- Anti-damage starter motor system
- Multi functional display (Voltage / Frequency / Run Time)
- Anti-vibration mountings for minimal vibration
- Wheels for easy portability
| Model | Single Phase | Three Phase |
| 5KW | 5KW | |
| PGS6500E | PGS6500E3 | |
| Frequency(Hz) | 50/60 | 50/60 |
| Voltage(AC)(V) | 220/230/ | 220/380,230/400 |
| Voltage(DC)(V) | 12 | 12 |
| Current(A) | 8.3 | 8.3 |
| Engine speed(rpm) | 3000/3600 | 3000/3600 |
| Power facotr | 1 | 0.8 |
| Starting system | Recoil manual start & electric start | |
| Rate power(Kw) | 4.5 | 4.5 |
| Max power(Kw) | 5.0 | 5.0 |
| Engine model | 186FA(E) | 186FA(E) |
| Type | Single cylinder,vertical,direct injection,4-stroke | |
| Cooling type | Force air-cooled | Force air-cooled |
| Crankshaft direction | Clockwise from flywheel end | Clockwise from flywheel end |
| Continuous Output(Kw) | 5.9/6.9 | 5.9/6.9 |
| Maximum Output(Kw) | 6.5/7.5 | 6.5/7.5 |
| Bore*Stroke(mm) | 86*72 | 86*72 |
| Displacement(cc) | 418 | 418 |
| Fuel Tank Capacity(L) | 15 | 15 |
| Packing dimensions(L*W*H)mm | 950*550*770 | 950*550*770 |
| Lube-oil Capacity(L) | 1.65 | 1.65 |
| 20FT container (pcs) | 72 | 72 |
