Are you trying to size a generator or understand the electrical ratings on your equipment?
When comparing generators, transformers and industrial loads, many people are confused by the difference between kilowatts and kilovolt-amperes. Once you understand the relationship, you can select equipment that supports your load without adding unnecessary capacity. If you size it incorrectly, you may overload the alternator or pay for a system that is larger than you need.
Real power (kW), apparent power (kVA), power factor, and the formulas used when comparing the complete generator range are explained below.
Understanding the Basics: What Are kW and kVA?
kW and kVA are two different types of power delivery when you read an electrical specification. The difference between kilowatts and kilovolt-amperes is that the former represent the actual power consumed by the load and the latter represent the apparent power supplied by the source. Both values are important, as they enable you to accurately size a system without overloading the electrical or thermal capacity of the components.
What Is kW (Kilowatt) and Actual Power?
Real power, or active power, or working power is measured in kilowatts (kW). It is the part of electrical energy that is transformed into a useful form of energy like rotating a motor shaft, heat or lighting.
Formula representation: 1 kW = 1,000 watts (W)
The power that does measurable work.
Your energy use and utility bill are typically in terms of kilowatt-hours (kWh), which are units of energy, not power.
What Is kVA (Kilovolt-Ampere) and Apparent Power?
In an AC system, the apparent power is measured in kilovolt-ampere (kVA). It is the total voltage-current product which the source has to deliver, both the power converted into useful work and the reactive power to provide for inductive or capacitive loads.
Formula representation: 1 kVA = 1,000 volt-amperes (VA)
Function: It indicates the total electrical capacity required from the source.
Component breakdown: Apparent power combines active power (kW) and reactive power (kVAR), which is associated with equipment such as motors and transformers.
The Role of Power Factor in Electrical Efficiency
Power factor (PF) is the connection between KW and KVA. Power factor is a ratio (0-1) that indicates the percentage of apparent power converted to real power under a specific operating condition.
Power Factor = kW / kVA
Most 3-phase generator sets are rated at 0.8 lagging power factor; check nameplate and manufacturer’s literature for the specific generator set.
Key Differences Between Kilowatts (kW) and Kilovolt-Amperes (kVA)
The practical difference between kW and kVA is the amount of power that does useful work and the amount of electrical capacity that the source has to carry. These two values may appear to be interchangeable but they have different impacts on generator and equipment sizing.
Power Type: Real Power vs. Apparent Power
When comparing kVA and kW, pay attention to the type of power that is represented by each:
kW (real power): The electrical power that is converted into useful output, e.g. motor rotation, heat or light.
kVA (apparent power): Total voltage-current product supplied to the circuit, comprising real and reactive power.
In an AC circuit, kW does not equal kVA. Apparent power must be greater than or equal to real power. The two values are numerically equal, however, at a unity power factor of 1.0.
Efficiency and Power Factor Variance
Power factor determines the difference between real power and apparent power. The lower the power factor, the more current and kVA the source must supply to generate the same kW of useful power.
A typical example of a rating is the power factor of 0.8 used by many industrial three-phase generator sets.
1.0 power factor (unity): For a purely resistive load, kW equals kVA.
A 100 kVA generator at 0.8 power factor can deliver 80 kW of real power at rated condition.
Determination of power factor allows you to ensure that the generator alternator and associated equipment are not overloaded in terms of current and thermal capacity.
How to Convert Between kW and kVA
From one value it is possible to convert the kW to kVA and the other way around as soon as the power factor to apply is known. Do not default to 0.8 for all installations; apply load data, engineering specification or generator nameplate where available.

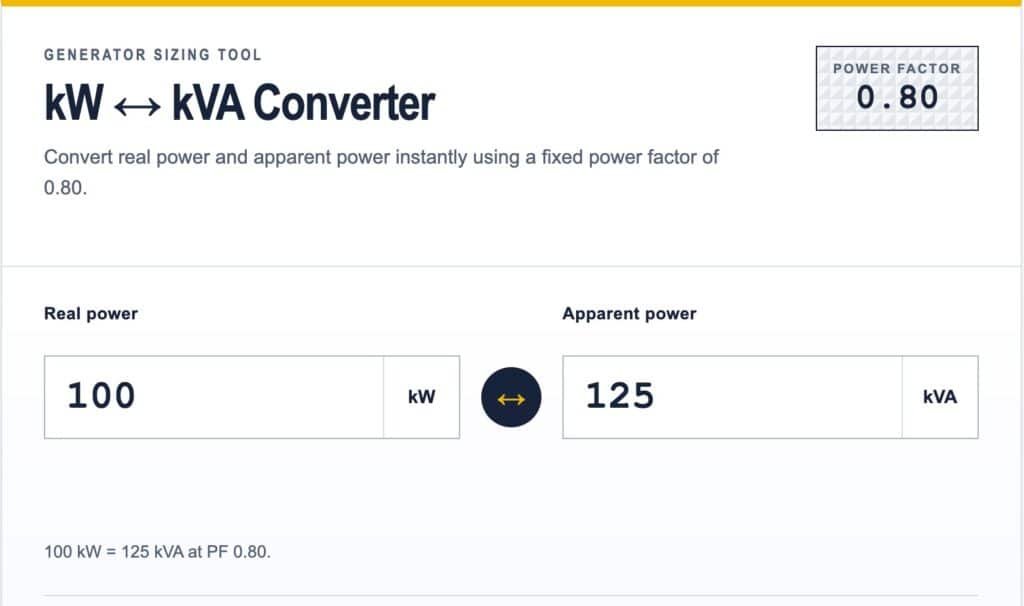

Generator sizing tool
kW ↔ kVA Converter
Convert real power and apparent power instantly using a fixed power factor of 0.80.
Enter a value in either field to calculate the other.
kVA = kW ÷ 0.80
kW = kVA × 0.80
This calculator uses PF 0.80, a common generator rating convention. Confirm the required power factor and starting load before selecting equipment.
kW to kVA Conversion Formula
Apparent power can be determined by dividing the known real-power load (kW) by the power factor.
Formula: kVA = kW / Power Factor (PF)
Example: Your equipment consumes 80 kW at a 0.8 PF:
80 kW / 0.8 = 100 kVA
Your required kVA is equal to or greater than the kW value, as the power factor cannot be more than 1.
kVA to kW Conversion Formula
The available real power from a kVA rating is calculated by multiplying the kVA rating by the power factor.
- Formula: kW = kVA × Power Factor (PF)
If you have a 250 kVA generator with a power factor of 0.8:
- 250 kVA × 0.8 = 200 kW
While these conversions provide a starting point, other factors to consider in selecting a generator include motor-starting current, load steps, harmonics, altitude, temperature and desired duty rating.
Practical Application Scenarios for kW and kVA
The difference between kW and kVA is particularly relevant when you choose generators, transformers, switchgear, cables, and protection devices. When you use the appropriate measurement, you can reduce nuisance trips, overheating, and poor motor-starting performance.
Practical Examples for AC and DC Systems
Direct current (DC) systems: In the AC sense there is no concept of reactive power for DC systems. The real power is equal to the voltage times the current and the kVA is not usually used as a separate rating for DC.
Alternating current (AC) systems: Motors, transformers, HVAC systems, and other inductive loads generate reactive power, and may cause the current to lag behind the voltage. These systems can have a higher kVA rating than the kW rating, so both kVA and kW are needed to assess source capacity.
Generators and Industrial Equipment Sizing
Generator sets are commonly rated in both kVA and kW due to the fact that each of these numbers addresses a different sizing question:
Total capacity protection (kVA): kVA rating is the voltage and current that the alternator can deliver, within thermal protection limits, under the conditions specified.
Real work output (kW): The kW rating is the actual power that is available to power motors, heaters, lights and other loads.
Industrial sizing example: An 800 kVA generator is equivalent to 640 kW at a power factor of 0.8. Motor-starting requirements and transient voltage dip must still be checked for confirmation of final size.
If your application is one that is going to be running for longer periods of time or if it is an application that can’t tolerate noise, compare these calculations to the ratings of a suitable silent diesel generator. You should also check the waveform and total harmonic distortion ratings offered in inverter generator options if you are using sensitive electronics.
Conclusion
The distinction between kW vs kVA has a direct impact on Power Equipment sizing. kW is a measure of the actual power consumed by the equipment when it is doing work, and kVA is a measure of the apparent power that the electrical source must provide.
Keep in mind the following relationship: kW = kVA × Power Factor and kVA = kW / Power Factor. Check the load power factor, total load running, motor starting demand and operating conditions before selecting a generator. Then, you can compare the calculated requirement to an appropriately rated generator rather than go by kW or KVA alone.
FAQs
Is kW and kVA the same thing?
Real power is measured in kW and apparent power is measured in kVA. They will be equal in numbers only if the power factor is 1.0. If the power factor is less than 1.0, then kVA is greater than the kW.
What is the main difference between kW and kVA?
The main difference is the type of power represented:
kW (real power): Power used for useful work, e.g., light, heat, or movement.
kVA (apparent power): Total voltage-current product that the source must deliver, including real and reactive power.
The link: kW = kVA × Power Factor.
Why are industrial generators rated in kVA rather than kW?
Generator alternators are usually rated in kVA since thermal limits are primarily determined by voltage and current. The power factor and hence the kW delivered at a given kVA is dependent upon the connected load. Manufacturers may have both ratings available to see the alternator capacity and the engine power in tandem.
How do I convert kVA to kW for commercial equipment?
- Calculate the power factor times kVA rating:
Power Factor = kW / kVA.
- A 100 kVA generator, for instance, can deliver 80 kW at 0.8 power factor.
When the actual power factor is known, use it. A default value is only an assumption and may not represent your connected load.
Can kW ever be higher than kVA?
No. In an AC system, the power factor cannot be greater than 1.0 and therefore the kW cannot be greater than the kVA. The kW is equal to the kVA at unity PF and less than the kVA at PFs less than unity.
